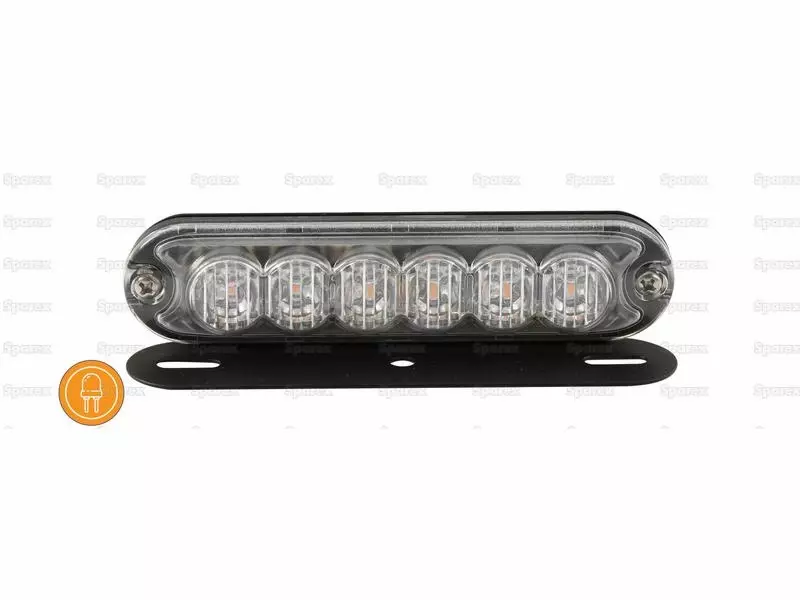

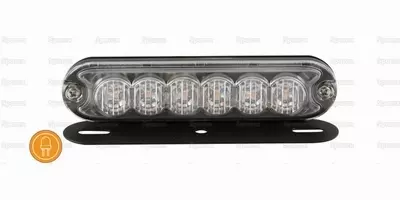

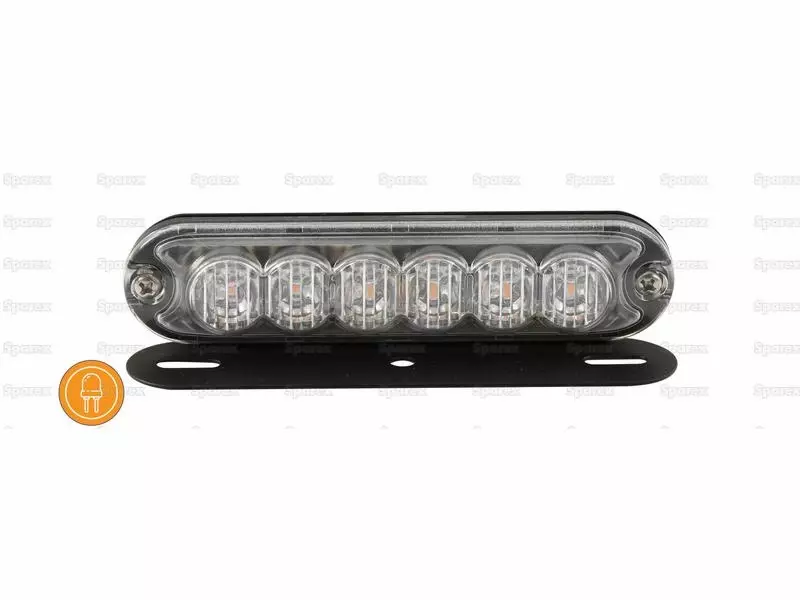

LED Slimline Hazard Light Interference Class 3 Function Single Flash Double Flash 12-24V

Name: LED Slimline Hazard Light Interference Class 3 Function Single Flash Double Flash 12-24V ""
SKU: SP-152731
Price: 21.710 GBP
Availability: InStock

SP-152731

Description
ECE Rating: Reg 65, Reg 15
CE Approved: Yes
IP Rating: IP65

Brand

Sparex

Cable length (mm)

450

CE Approved

Yes

Connection Type

None

ECE Rating

Reg 65, Reg 15

Effective Lumens

450

Fixing:

Screw Base

Function

Single Flash, Double Flash

Housing Material

Aluminium

Interference EMC EMI CISPR 25

Class 3

IP Rating

IP65

Lens Colour

Clear

Lens Material

Plastic Safety Glass

Light Colour

Amber

Light source

LED

Lumens Raw

900

Lux Value

500

Number of LEDs:

6 LEDs

Overall height (mm)

11

Overall length (mm)

130

Overall width (mm)

30

Power Consumption @ 12V:

0.67Amps

Power Consumption @ 24V:

0.35Amps

Profile

Low

RoHS Approved

Yes

SAE Approved

No

Shape

Rectangular

Tariff Code

8512200030

Volts

12-24V

Watts

8W

With Noise Suppression

Yes

Working Temperature °C

-20°C to 50°C
