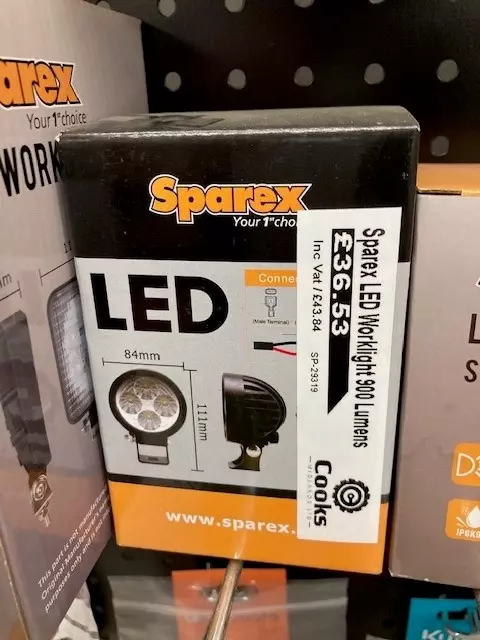

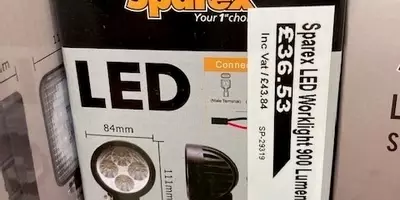

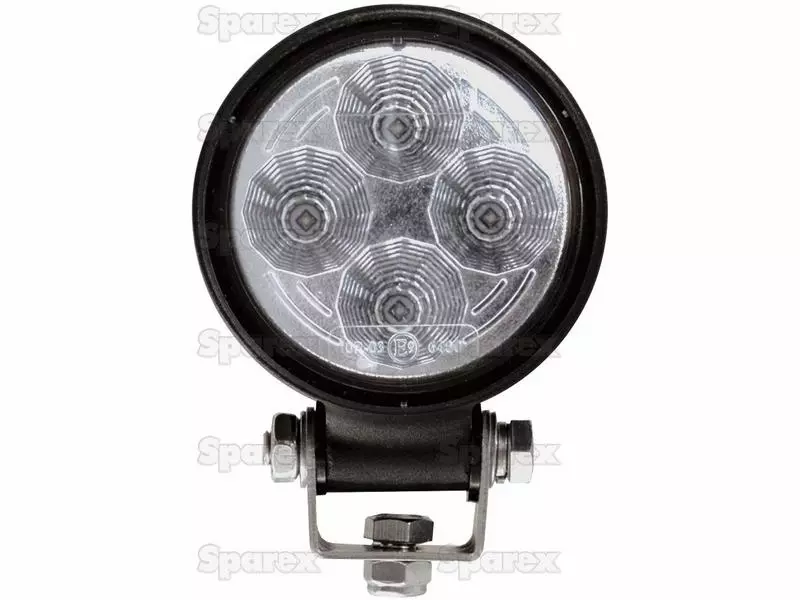

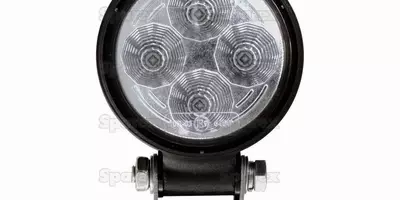

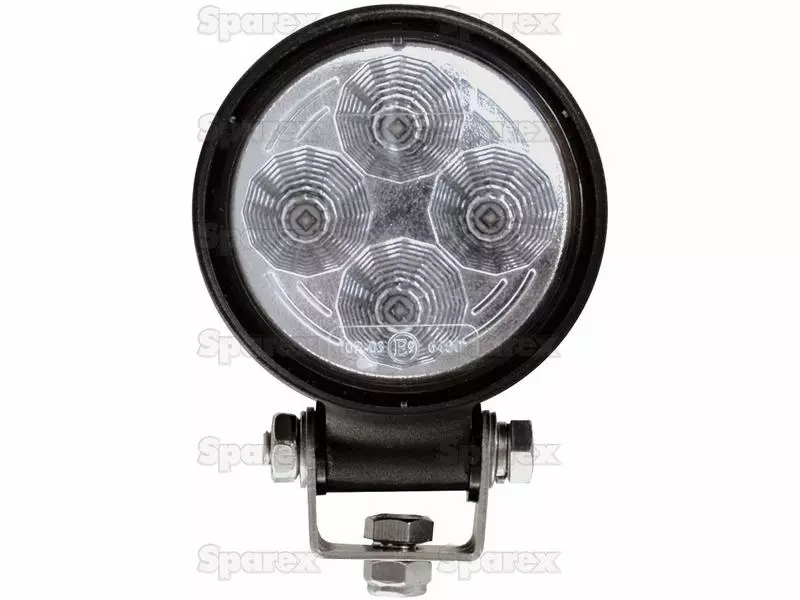

LED Work Light, Interference: Class 1, 900 Lumens Raw 10-30V

LED Work Light, Interference: Class 1, 900 Lumens Raw 10-30V

SP-29319

Description
ECE Rating: Reg 10
CE Approved: Yes
IP Rating: IP6K9K
Connection Type: For Male or Female Insulated Terminal

Beam Angle

60°

Beam Type

Flood Beam

Brand

Sparex

Cable length (mm)

1000

CE Approved

Yes

Connection Type

For Male or Female Insulated Terminal

ECE Rating

Reg 10

Effective Lumens

640

Fixing:

Bracket

Housing Material

Aluminium

Interference EMC EMI CISPR 25

Class 1

IP Rating

IP6K9K

Lens Colour

Clear

Lens Material

Plastic Safety Glass

Light source

LED

Lumens Raw

900

Lux Value

2460

Notes

Dimensions without bracket

Number of LEDs:

4 LEDs

On/Off Switch

No

Overall height (mm)

111

Overall length (mm)

84

Overall width (mm)

65

Power Consumption @ 12V:

0.92Amps

Power Consumption @ 24V:

0.46Amps

Related products

112533,115244,118931

RoHS Approved

Yes

SAE Approved

No

Shape

Round

Tariff Code

8539213000

Volts

10-30V

Watts

12W

With Noise Suppression

Yes

Working Temperature °C

-40°C to 50°C

Ø (mm)

84
