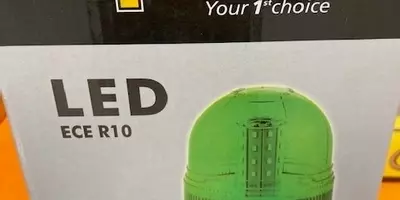

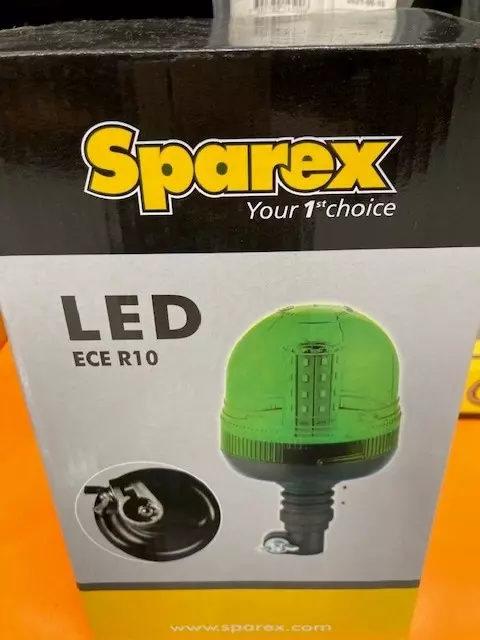

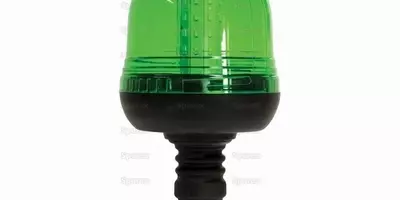

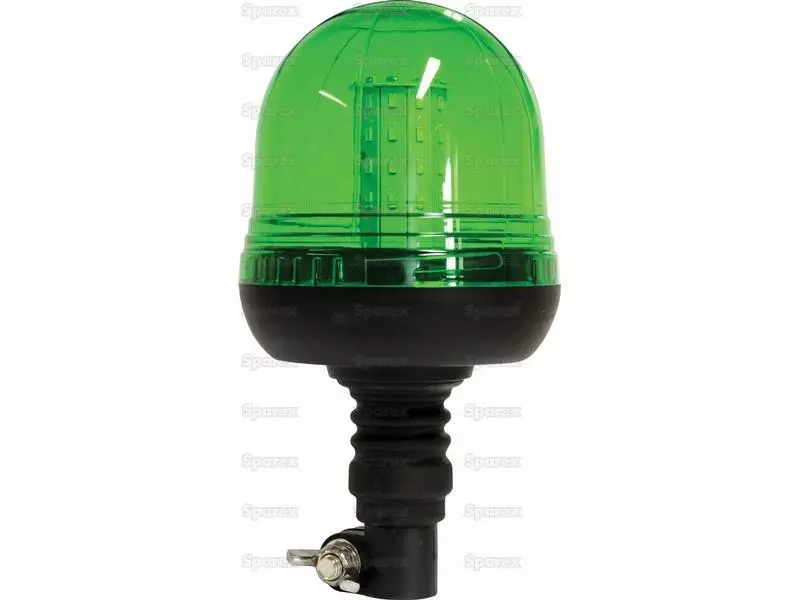

LED Beacon (Green), Interference: Class 3, Flexible Pin 12-24V

LED Beacon (Green), Interference: Class 3, Flexible Pin 12-24V

SP-118306

Description
ECE Rating: Reg 10
CE Approved: Yes
IP Rating: IP55
Profile: Standard
Function: Single Flash, Double Flash, Rotating

Alternative to

118999

Brand

Sparex

CE Approved

Yes

Connection Type

None

ECE Rating

Reg 10

Effective Lumens

300

Fixing:

Flexible Pin

Function

Single Flash, Double Flash, Rotating

Housing Material

Rubber

Interference EMC EMI CISPR 25

Class 3

IP Rating

IP55

ISO Rating

ISO 9001

Lens Colour

Green

Lens Material

Plastic Safety Glass

Light source

LED

Lumens Raw

600

Lux Value

120

Number of LEDs:

40 LEDs

Overall height (mm)

240

Overall length (mm)

128

Overall width (mm)

128

Power Consumption @ 12V:

1.25Amps

Power Consumption @ 24V:

1.25Amps

Profile

Standard

RoHS Approved

Yes

SAE Approved

No

Shape

Round

Speed

Rotating: 120+/-4 rpm, Double Flash: 346+/-4 rpm, Six Flash: 428+/-4 rpm

Tariff Code

8512200000

Volts

12-24V

Watts

15-30W

With Noise Suppression

Yes

Working Temperature °C

-30°C to 50°C

Ø (mm)

128
Download PDF
