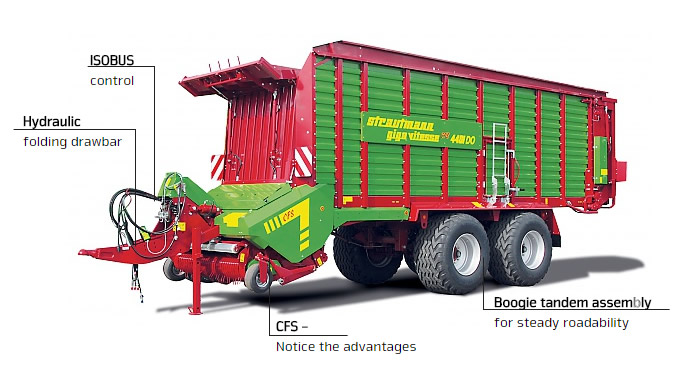

High-performance silage wagons are facing increasing demands with regard to higher efficiency, and when in competition with forage harvesters. As well as this, low drag resistance and low power requirement are called for when using professional forage wagons. The Strautmann Giga-Vitesse with its new conveying unit (Continuous Flow System) provides an almost unrivalled product for contractors and large businesses. This forage wagon is setting standards with regard to optimum loading, low power requirement and cost effectiveness.
The Giga-Vitesse, which benefits from the Continuous Flow System, is continuing the successful path which Strautmann has pursued since the introduction of the previous Giga-Vitesse (with no Continuous Flow System). A high-performance conveying assembly with a unique cutting unit, together with a solid body and a variety of chassis types for most different conditions have gained an excellent reputation over the years.
The Giga-Vitesse 01 range features a 2m camless pick-up, whilst the 02 range has the wider 2.25m campless pick-up, which means that in fields where grass has been poorly raked and left in wide swathes, and also around headlands and corners, drivers will find efficient pick-up much easier.
- Loading capacity according to DIN of 30 – 42m³
- Continuous Flow System accelerator drum
- Double benefit
- Spiral rotor with tine plates
- 45 double sided knives "01" series (35mm theoretical chop length)
- 44 double sided knives "02" series (35mm theoretical chop length)
- Power required from 96/130 kW/HP
- 2m camless pick up on "01" series
- 2.25m camless pick up on "02" series
Models
Giga-Vitesse 01
The Giga-Vitesse 01 models have a pick-up width of 2.00m with holding capacities of 57m³, 65m³, 72m³ and 80m³ (30-42m³ DIN)
- 57-80m³
- 2m camless pick up on “01” series
- 45 double-sided knives “01” series (35mm theoretical chop length)
- 4 floor chains
- From 130 hp
- Auto load
- ISOBUS controls
- 2 speed floor
- Hydraulic sprung drawbar
- Load lights
| Model No. | Description | Size |
| 25V5000050 | Giga Vitesse 3201 Wooden Floor (4 x 710/50 R26.5 wheels on tandem steering axle, 10 stud) | 57m3 (30m3 DIN) |
| 25V5010051 | Giga Vitesse 3601 Wooden Floor (4 x 710/50 R26.5 wheels on tandem steering axle, 10 stud) | 65m3 (34m3 DIN) |
| 25V5010050 | Giga Vitesse 3601 Steel Floor (4 x 710/50 R26.5 wheels on tandem steering axle, 10 stud) | 65m3 (34m3 DIN) |
| 25V4960051 | Giga Vitesse 4001 Wooden Floor (4 x 710/50 R26.5 wheels on tandem steering axle, 10 stud) | 72m3 (38m3 DIN) |
| 25V4960050 | Giga Vitesse CFS 4001 Steel Floor (4 x 710/50 R26.5 wheels on tandem steering axle, 10 stud) | 72m3 (38m3 DIN) |
| 25V4980050 | Giga Vitesse CFS 4401 Steel Floor (4 x 710/50 R26.5 wheels on tandem steering axle, 10 stud) | 80m3 (42m3 DIN) |
Giga-Vitesse 02
The wider 2.25m 02 pick-up means that in fields where grass has been poorly raked and left in wide swathes, and also around headlands and corners, drivers will find efficient pick-up much easier. The new rotor design further enhances the action of the Continuous Flow System by ensuring an even grass density at the outside of the chopper rotor which in turn densely fills the full width of the wagon.
In this new 02 model range, the conveying unit has been completely revised. The camless pick-up with 6 V-shaped tine rows is equipped with plastic strippers preventing early tine wear and improving smooth running.
The guide wheels have also been modified: they can remain in position during road travel and do not need to be retracted. Furthermore, their height adjustment has been made easier, and hence the operating height of the pick-up is now also more easily adjusted. Unique to Strautmann forage wagons is the Continuous Flow System roller which is situated between the pick-up and the rotor. It ensures grass is presented evenly and spread across the full width of the chopper rotor. The new chopper rotor features 8 helical rows of feeder tines which convey the material into the cargo space, across a width of 1600mm. Side augers, 250mm in width, have been incorporated at either end of the rotor. They reliably convey the material from the outsides of the pick-up inwards to the rotor tines. Thus, the working width of the rotor reaches an overall width of 2100mm. The rotor drive has also been revised: on the right-hand side, an oil-bath gearbox transmits the tractor power to a planetary gear set integrated in the rotor. Thus, the speed is only reduced at the rotor, which prevents high torques in the power train. In summary, the new model Giga-Vitesse 3602 now has a 2.25m pick up, new side augers and 44 knives feeding a 1.54m rotor to give a 35mm theoretical chop length. Other features remain the same except for a small increase (5cm) in transport width - to 2.86m - due to the wider pick-up.
| Model No | Description | Size |
| 25V5010053 | Giga Vitesse 3602 Steel Floor (4 x 710/50 R26.5 wheels on tandem steering axle, 10 stud) | 65m3 (34m³ DIN) |
| 25V4960052 | Giga Vitesse 4002 Steel Floor (4 x 710/50 R26.5 wheels on tandem steering axle, 10 stud) | 72m3 (38m³ DIN) |
| 25V4980052 | Giga Vitesse 4402 Steel Floor (4 x 710/50 R26.5 wheels on tandem steering axle, 10 stud) | 80m3 (42m³ DIN) |
Download the brochures here: forage-wagon-giga-vitesse-02-cfs.pdf (strautmann.co.uk)
