Post hole diggers

Since 1910, family-owned Danuser has been known for quality and innovation. OPICO have been selling Danuser post hole diggers for over 40 years in the UK.

Each post hole digger or hole borer is constructed of high-grade material and machined to precise tolerances to handle all of your rigorous digging needs.

Danuser post hole diggers are built to stand the test of time, and the gearbox design proves that. The gearbox is built strong to last. All manufactured to the same quality standards, Danuser augers are built to perform.

A selection of auger points and cutting edges are available for different digging needs. All PTO Danuser post hole diggers are mounted via the 3-point hitch.

For over 40 years, landscapers, farmers and contractors have looked to OPICO, as one of the industry leader's in digging equipment. The J20/80 is most suitable to farmers, with the heavy duty F8 range more suitable for heavier contracting work.

The Farm Range

The Farm Range is designed for tractors from 20 to 80 hp, consists of one model and takes augers to suit a 2" (50mm) solid round output spindle.

The Contractors' range

The Contractors' range has a heavier duty boom and lower gear ratio and is designed to take augers to suit a 29⁄16" (65mm) solid round output spindle


FEATURES & BENEFITS

Gearboxes

Danuser gearboxes are cast in the USA. Strong and long lasting, these castings are made from high-quality materials and machined by Danuser to tight tolerances. The ring gear and pinions are mounted in Timken tapered roller bearings.

Drivelines

540 RPM Weasler drivelines for PTO models feature "Spline Finder" and "Quik Lok". All drivelines are fully guarded.

Booms, Yokes and Adapter Kits

Booms and yokes are high strength, thick walled, tubing. Adapter kits allow mounting Danuser equipment to a wide variety of machines.

Augers

Double flight construction. Hole depth 40 inches. Diameters from 4 to 36 inches. The maximum diameter and hole depth is dependent on model specifications. Cutting edges, teeth, and points are all heat treated and replaceable.

Accessories

Down force kits, extensions with guards, plain and serrated cutting edges with teeth, and a selection of points are available.

Safety Guards

Auger adapter guards, fully guarded drivelines, pinion guards, and auger extension guards are all standard.

POST HOLE DIGGER MODELS

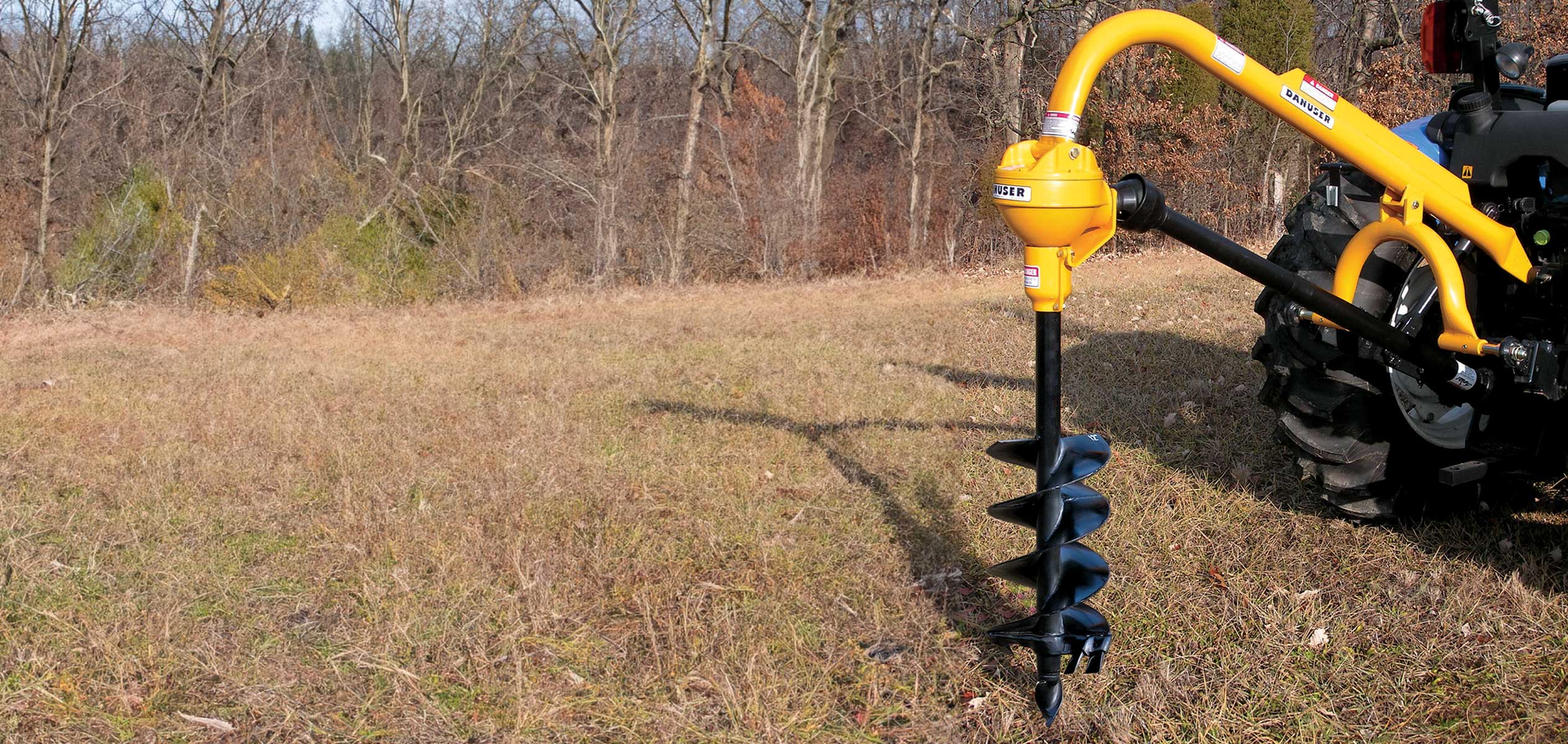

The J20/80 Farm Range

The J20/80 Farm Range

The J20/80 Farm Range is designed for 20 to 80 hp tractors and take augers to suit a 2" (50mm) solid round output spindle.

Model No: 05J20/80

Designed for use with 20-80 maximum hp tractors

TECHNICAL INFOMATION
Gearbox Gear ratio 3.1:1
Bearings Timken tapered roller
Seals Dual lip high quality, spring loaded
Output Spindle 2" (50mm) solid round
Boom 3 1/2" (89mm) OD Boom
Yoke 3" (75mm) OD tubing with Category 1 pins
Warranty Limited 5 year gear box warranty
Weight

118kg

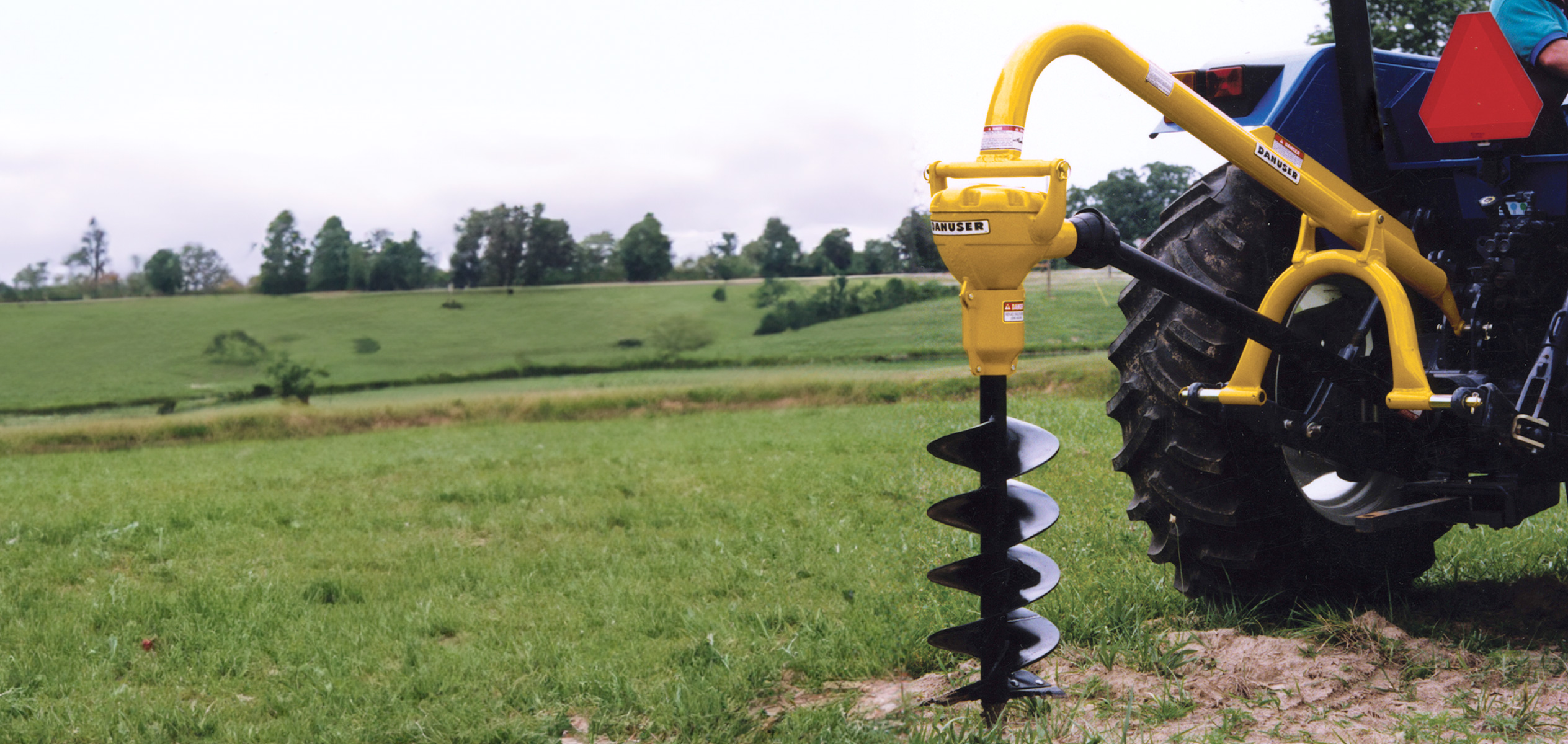

The F8 Contractor Range

The F8 Contractor Range

The F8 Contractor range is designed for contractors with a large helical cut bevel gearbox to take the higher torques generated by larger diameter augers and larger tractors and work day in day out.

The Contractors' range has a heavier duty boom and lower gear ratio and is designed to take augers to suit a 2 9/16" (65mm) solid round output spindle.

Model No: 05F8

Cat. 1/11 3-point linkage PTO driven

TECHNICAL INFOMATION



Gearbox Gear ratio 3.1:1
Bearings Timken tapered roller
Seals Dual lip high quality, spring loaded
Output Spindle 2" (50mm) solid round
Boom 3 1/2" (89mm) OD Boom
Yoke 3" (75mm) OD tubing with Category 1 pins
Warranty Limited 5 year gear box warranty
Weight 122kg
